Introduction to Sphinx-Needs

Define a Need

Documentation: How-to work with Sphinx-Needs Need [1].

Example 1: How-to create a Need.

.. req:: Example Requirement
   :id: R_EXAMPLE_REQUIREMENT
   :status: new

   This is our example requirement.


.. spec:: Example Specification
   :id: S_EXAMPLE_SPECIFICATION
   :status: new
   :links: R_EXAMPLE_REQUIREMENT

   This is our example Specification.

Requirement: Example Requirement R_EXAMPLE_REQUIREMENT

status: new links incoming: S_EXAMPLE_SPECIFICATION

This is our example requirement.

Specification: Example Specification S_EXAMPLE_SPECIFICATION

status: new links outgoing: R_EXAMPLE_REQUIREMENT

This is our example Specification.

Minimum need

With needs_title_optional it is even possible to skip the title.

Example 2: Minimum Need.

.. need::
   :id: N_MINIMUM_NEED

Need: N_MINIMUM_NEED

So the bare minimum need only has a :id:.

Rendering of a fully defined need

Example 3: Fully defined need Need.

.. need:: The title of the need gives some basic context
   :id: N_FULLY_NEED
   :status: draft
   :tags: my_tags

   Here we can write our content.

   It is possible to use multiple blocks of text, seperated by empty new lines.

   | We can even detail
   | where we have textual line breaks within the block.

   We can add pictures:

   .. figure:: pictures/avatar.png
      :scale: 100 %
      :alt: My avatar

      First line is the caption of the figure (a simple paragraph).

      A legend consists of all elements after the caption.

   And tables:

   .. table:: Truth table for "not"
      :widths: auto
      :align: center

      =====  =====
      A      not A
      =====  =====
      False  True
      True   False
      =====  =====

   And many more. See the following examples.

Need: The title of the need gives some basic context N_FULLY_NEED

status: draft tags: my_tags

Here we can write our content. It is possible to use multiple blocks of text, seperated by empty new lines. We can even detail where we have textual line breaks within the block. We can add pictures: Fig. 20 First line is the caption of the figure (a simple paragraph). A legend consists of all elements after the caption. And tables: Table 36 Truth table for “not” A not A False True True False And many more. See the following examples.

Types

Documentation: How-to configure Sphinx-Needs Types [2].

Options

Documentation: How-to configure Sphinx-Needs Options [3].

The special option :id:, has to be unique within the current project. It is often useful, you write self speaking id’s which even can be easily reviewed. Additionally you can use auto generated ids via IDE extension or scripting see https://github.com/useblocks/sphinx-needs/issues/728. A discussion how ID’s could be generated across organisations is currently ongoing in https://github.com/useblocks/sphinx-needs/discussions/1088#discussioncomment-8131189.

Links

Documentation: How-to configure Sphinx-Needs Links [4].

Reference to Needs

Documentation: How-to use Sphinx-Needs Reference to Needs [5].

Example 4: Reference to Needs

:need:`R_EXAMPLE_REQUIREMENT` is here like a customer requirement,
where the :need:`[[title]] in [[status]] ([[id]]) <S_EXAMPLE_SPECIFICATION>` is our derived specification.

Example Requirement (R_EXAMPLE_REQUIREMENT) is here like a customer requirement, where the Example Specification in new (S_EXAMPLE_SPECIFICATION) is our derived specification.

Embedded a Need in a Need

Example 5: Embedded a Need in a Need

.. need:: Parent
   :id: N_PARENT

   Here is some text before the embedded need. You could even write any other rst text.

   .. need:: Child
      :id: N_CHILD

      Here is some text inside of the embedded need. You could even write any other rst text.

   Here is some text after the embedded need. You could even write any other rst text.

Need: Parent N_PARENT

child needs: N_CHILD

Here is some text before the embedded need. You could even write any other rst text. Need: Child N_CHILD parent needs: N_PARENT Here is some text inside of the embedded need. You could even write any other rst text. Here is some text after the embedded need. You could even write any other rst text.

NeedPart

Example 6: Need with needpart, linking to parts and filter

.. need:: Test need with need parts
   :id: N_NEED_WITH_PARTS
   :tags: needpart_example

   :np:`(precondition)` of the need.

   :np:`(2) Part 2 of need`.

   Part :np:`(3)`: Here is your thired part of need.

.. need:: Need links to part 1
   :id: N_LINK_TO_PART1
   :tags: needpart_example
   :links: N_NEED_WITH_PARTS.precondition

.. need:: Need links to part 2 and 3
   :id: N_LINK_TO_PART2
   :tags: needpart_example
   :links: N_NEED_WITH_PARTS.2, N_NEED_WITH_PARTS.3

   We link to :need:`N_NEED_WITH_PARTS.2` and :need:`N_NEED_WITH_PARTS.3`.

.. needtable::
   :tags: needpart_example
   :filter: is_need
   :show_parts:
   :columns: id;title;outgoing;incoming
   :style: table

Need: Test need with need parts N_NEED_WITH_PARTS

tags: needpart_example links incoming: N_LINK_TO_PART1, N_LINK_TO_PART2

precondition of the need. Part 2 of need 2. Part 3: Here is your thired part of need.

Need: Need links to part 1 N_LINK_TO_PART1

tags: needpart_example links outgoing: N_NEED_WITH_PARTS.precondition

Need: Need links to part 2 and 3 N_LINK_TO_PART2

tags: needpart_example links outgoing: N_NEED_WITH_PARTS.2, N_NEED_WITH_PARTS.3

We link to Part 2 of need (N_NEED_WITH_PARTS.2) and (N_NEED_WITH_PARTS.3).

ID	Title	Outgoing	Incoming
N_LINK_TO_PART1	Need links to part 1	N_NEED_WITH_PARTS.precondition
N_LINK_TO_PART2	Need links to part 2 and 3	N_NEED_WITH_PARTS.2; N_NEED_WITH_PARTS.3
N_NEED_WITH_PARTS	Test need with need parts		N_LINK_TO_PART1; N_LINK_TO_PART2
→ N_NEED_WITH_PARTS.precondition	→		N_LINK_TO_PART1
→ N_NEED_WITH_PARTS.2	→  Part 2 of need		N_LINK_TO_PART2
→ N_NEED_WITH_PARTS.3	→		N_LINK_TO_PART2

External Projects

To reuse needs from another project, you can use the following possibilities:

needs_external_needs

With needs_external_needs you can import the needs.json from another project. The needs are available in the memory of the current Sphinx-Needs build, but all links jump to another web-project / web-server.

We have add an external project already referenced within this documentation:

Listing 3 How-to add a external project

needs_external_needs = [
    {
        'base_url': 'https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io',
        'json_url':  'https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/needs.json',
        'css_class': 'external_link',
    },
]

Needs are read from the other project, marked as external, and can be used as they would be created within this project. You can find filters, which use the imported needs in all following reports.

needimport

You can even import the needs with needimport from another project, but the needs are rendered within your project.

Documentation: How-to import needs with needimport.

Example 7: How-to import a Need.

.. needimport:: example_needs.json
   :id_prefix: imp_
   :tags: imported
   :template: extend_template

Stakeholder Requirement: Test Item imp_test_item

status: implemented tags: artifact, imported safety_level: not set security_level: not set reject_reason: | Here I add a multi line reject reason. | First line | Second line

Keep my test text. Reject Reason added during needimport: Reject Reason copied with dynamic function: | Here I add a multi line reject reason. | First line | Second line

We do use here a template, to make the reject_reason available to the content of the need. The reject_reason is been set in the needextend in the next chapter.

In the template extend_template we access to the reject reason:

Listing 4 file extend_template.need

{# Place the original content here #}
{{content}}


**Reject Reason added during needimport:**
{{reject_reason}}

**Reject Reason copied with dynamic function:**
:ndf:`copy('reject_reason', '{{id}}')`

You can find the documentation of the option template for needimport in needimport customization.

You can find the documentation of the option template for need in need template.

You can find the documentation of dynamic functions and the copy function especially in dynamic functions.

How-to change a need with needextend

Documentation: How-to extend needs with needextend.

Here we extend the imported needs from previous chapter with additional information.

Example 8: How-to extend a Need.

.. needextend:: imp_test_item
   :status: implemented
   :reject_reason:
      | Here I add a multi line reject reason.
      | First line
      | Second line

Challenges

The issue with needextend is, how to ensure the final output is correct. Here it is often necessary to protect attributes for changes with needextend via needs_warnings. See Monitoring modifications.

Filter

Documentation: How-to use Sphinx-Needs Filters [6].

We use these filters in different examples within this document in the following reports.

NeedPie

Documentation: How-to use Sphinx-Needs NeedPie [7].

Example 9: How-to use a NeedPie.

.. needpie:: Ratio of requirement types
   :labels: Stakeholder Requirement, Software Requirement, Evaluation

   type == 'stake_req' and is_external == True
   type == 'sw_req' and is_external == True
   type == 'evaluation' and is_external == True

NeedBar

Documentation: How-to use Sphinx-Needs NeedBar [8].

Example 10: How-to use a NeedBar.

.. needbar:: Requirements & Status Overview
   :legend:
   :colors: black, yellow, orange, green
   :xlabels: FROM_DATA
   :ylabels: FROM_DATA

              ,        Stakeholder Requirement             ,           Software Requirement
         empty, type=='stake_req' and status==''           ,    type=='sw_req' and status==''
      accepted, type=='stake_req' and status=='accepted'   ,    type=='sw_req' and status=='accepted'
   implemented, type=='stake_req' and status=='implemented',    type=='sw_req' and status=='implemented'
      verified, type=='stake_req' and status=='verified'   ,    type=='sw_req' and status=='verified'

NeedTable

Documentation: How-to use Sphinx-Needs NeedTable [9].

Example 11: How-to use a NeedTable.

.. needtable:: List of software requirements
   :types: sw_req
   :style: table
   :columns: id; title; status

List of software requirements

ID	Title	Status
SWRQ_ALLOW_DOUBLE_DEFINITION	Allow double definitions of same Key / Value	verified
SWRQ_DETECT_MERGE_CONFLICTS	Detect merge conflicts	verified
SWRQ_LIST_OF_DICTS	Definition: list of dictionaries	verified
SWRQ_MERGE_DICTS	Merge python dictionaries	verified
SWRQ_TOOL_merge_dicts	Name of the tool: merge_dicts	verified
SWRQ_USE_FIRST_VALUE_FOR_KEY	Output in merge conflict case	verified

Example 12: How-to use a NeedTable II.

.. needtable:: List of stakeholder requirements
   :types: stake_req
   :style: datatables
   :columns: id; title; status; is_external as "External"

List of stakeholder requirements

ID	Title	Status	External
01-00	Configuration item	new	False
01-03	Software item	new	False
01-50	Integrated software	new	False
01-51	Application parameter	new	False
02-00	Contract	new	False
02-00_old	Contract	new	False
02-01	Commitment/agreement	new	False
02-01_old	Commitment / agreement	new	False
02-50	Interface agreement	new	False
03-00	Data	new	False
03-03	Benchmarking data	new	False
03-04	Customer satisfaction data	new	False
03-06	Process performance data	new	False
04-00	Design	new	False
04-02	Domain architecture	new	False
04-03	Domain model	new	False
04-04	Software architectural design	new	False
04-04_old	Software architectural design	new	False
04-05	Software detailed design	new	False
04-05_old	Software detailed design	new	False
04-06	System architectural design	new	False
04-06_old	System architectural design	new	False
05-00	Goals	new	False
06-00	User documentation	new	False
06-01	Customer manual	new	False
06-02	Handling and storage guide	new	False
06-04	Training material	new	False
07-00	Measure	new	False
07-01	Customer satisfaction survey	new	False
07-02	Field measure	new	False
07-03	Personnel performance measure	new	False
07-04	Process measure	new	False
07-05	Project measure	new	False
07-06	Quality measure	new	False
07-07	Risk measure	new	False
07-07_old	Risk measure	new	False
07-08	Service level measure	new	False
08-00	Plan	new	False
08-04	Configuration management plan	new	False
08-12	Project plan	new	False
08-13	Quality plan	new	False
08-14	Recovery plan	new	False
08-14_old	Recovery plan	new	False
08-16	Release plan	new	False
08-17	Reuse plan	new	False
08-18	Review plan	new	False
08-19	Risk management plan	new	False
08-19_old	Risk management plan	new	False
08-20	Risk mitigation plan	new	False
08-20_old	Risk mitigation plan	new	False
08-26	Documentation plan	new	False
08-27	Problem management plan	new	False
08-28	Change management plan	new	False
08-29	Improvement plan	new	False
08-50	Test specification	new	False
08-50_old	Test specification	new	False
08-51	Technology monitoring plan	new	False
08-52	Test plan	new	False
08-52_old	Test plan	new	False
09-00	Policy	new	False
09-03	Reuse policy	new	False
10-00	Process description	new	False
11-00	Product	new	False
11-03	Product release information	new	False
11-04	Product release package	new	False
11-05	Software unit	new	False
11-05_old	Software unit	new	False
11-06	System	new	False
11-07	Temporary solution	new	False
12-00	Proposal	new	False
12-01	Request for quotation	new	False
12-01_old	Request for proposal	new	False
12-03	Reuse proposal	new	False
12-04	Supplier proposal response	new	False
13-00	Record	new	False
13-01	Acceptance record	new	False
13-01_old	Acceptance record	new	False
13-04	Communication record	new	False
13-04_old	Communication record	new	False
13-05	Contract review record	new	False
13-06	Delivery record	new	False
13-07	Problem record	new	False
13-08	Baseline	new	False
13-09	Meeting support record	new	False
13-10	Configuration management record	new	False
13-13	Product release approval record	new	False
13-14	Progress status record	new	False
13-14_old	Progress status record	new	False
13-15	Proposal review record	new	False
13-16	Change request	new	False
13-16_old	Change request	new	False
13-17	Customer request	new	False
13-18	Quality record	new	False
13-19	Review record	new	False
13-19_old	Review record	new	False
13-20	Risk action request	new	False
13-20_old	Risk action request	new	False
13-21	Change control record	new	False
13-22	Traceability record	new	False
13-22_old	Traceability record	new	False
13-24	Validation results	new	False
13-24_old	Validation results	new	False
13-25	Verification results	new	False
13-25_old	Verification results	new	False
13-50	Test results	new	False
13-50_old	Test results	new	False
14-00	Register	new	False
14-01	Change history	new	False
14-02	Corrective action register	new	False
14-02_old	Corrective action register	new	False
14-05	Preferred suppliers register	new	False
14-05_old	Preferred suppliers register	new	False
14-06	Schedule	new	False
14-08	Tracking system	new	False
14-08_old	Tracking system	new	False
14-09	Work breakdown structure	new	False
14-11	Work product list	new	False
14-50	Stakeholder groups list	new	False
14-51	Cybersecurity scenario register	new	False
14-52	Asset library	new	False
15-00	Report	new	False
15-01	Analysis report	new	False
15-01_old	Analysis report	new	False
15-03	Configuration status report	new	False
15-05	Evaluation report	new	False
15-06	Project status report	new	False
15-07	Reuse evaluation report	new	False
15-08	Risk analysis report	new	False
15-08_old	Risk analysis report	new	False
15-09	Risk status report	new	False
15-09_old	Risk status report	new	False
15-12	Problem status report	new	False
15-13	Assessment/audit report	new	False
15-16	Improvement opportunity	new	False
15-18	Process performance report	new	False
15-21	Supplier evaluation report	new	False
15-21_old	Supplier evaluation report	new	False
15-50	Vulnerability analysis report	new	False
16-00	Repository	new	False
16-03	Configuration management system	new	False
16-06	Process repository	new	False
17-00	Requirement specification	new	False
17-02	Build list	new	False
17-03	Stakeholder requirements	new	False
17-05	Documentation requirements	new	False
17-08	Interface requirements specification	new	False
17-11	Software requirements specification	new	False
17-11_old	Software requirements specification	new	False
17-12	System requirements specification	new	False
17-12_old	System requirements specification	new	False
17-50	Verification criteria	new	False
17-51	Cybersecurity goals	new	False
17-52	Cybersecurity controls	new	False
18-00	Standard	new	False
18-01	Acceptance criteria	new	False
18-06	Product release criteria	new	False
18-07	Quality criteria	new	False
18-50	Supplier evaluation criteria	new	False
18-50_old	Supplier qualification criteria	new	False
19-00	Strategy	new	False
19-05	Reuse strategy	new	False
19-10	Verification strategy	new	False
19-10_old	Verification strategy	new	False
19-11	Validation strategy	new	False
19-11_old	Validation strategy	new	False
20-00	Template	new	False
21-00	Work product	new	False
ACQ11	Technical Requirements	new	False
ACQ11_BP1	ACQ.11.BP1: Elicit needs.	new	False
ACQ11_BP10	ACQ.11.BP10: Ensure compliance of stated requirements.	new	False
ACQ11_BP2	ACQ.11.BP2: Define technical requirements.	new	False
ACQ11_BP3	ACQ.11.BP3: Identify acquisition needs.	new	False
ACQ11_BP4	ACQ.11.BP4: Ensure consistency.	new	False
ACQ11_BP5	ACQ.11.BP5: Identify affected groups.	new	False
ACQ11_BP6	ACQ.11.BP6: Communicate to affected groups.	new	False
ACQ11_BP7	ACQ.11.BP7: Establish a change mechanism.	new	False
ACQ11_BP8	ACQ.11.BP8: Track impact of changing technology.	new	False
ACQ11_BP9	ACQ.11.BP9: Identify constraints and standards.	new	False
ACQ11_OUT1	1	new	False
ACQ11_OUT2	2	new	False
ACQ11_OUT3	3	new	False
ACQ11_OUT4	4	new	False
ACQ11_OUT5	5	new	False
ACQ11_OUT6	6	new	False
ACQ12	Legal and Administrative Requirements	new	False
ACQ12_BP1	ACQ.12.BP1: Identify relevant regulations.	new	False
ACQ12_BP10	ACQ.12.BP10: Establish criteria for liability issues.	new	False
ACQ12_BP2	ACQ.12.BP2: Consider relevant regulations.	new	False
ACQ12_BP3	ACQ.12.BP3: Agree on (contractual) terms and conditions.	new	False
ACQ12_BP4	ACQ.12.BP4: Ensure usage of agreed terms and conditions.	new	False
ACQ12_BP5	ACQ.12.BP5: Establish acceptance criteria.	new	False
ACQ12_BP6	ACQ.12.BP6: Establish escalation mechanisms.	new	False
ACQ12_BP7	ACQ.12.BP7: Establish management of intellectual property rights.	new	False
ACQ12_BP8	ACQ.12.BP8: Provide for warranties and service level agreements.	new	False
ACQ12_BP9	ACQ.12.BP9: Define provision for the suppliers.	new	False
ACQ12_OUT1	1	new	False
ACQ12_OUT2	2	new	False
ACQ12_OUT3	3	new	False
ACQ12_OUT4	4	new	False
ACQ12_OUT5	5	new	False
ACQ12_OUT6	6	new	False
ACQ12_OUT7	7	new	False
ACQ13	Project Requirements	new	False
ACQ13_BP1	ACQ.13.BP1: Identify relevant groups.	new	False
ACQ13_BP10	ACQ.13.BP10: Establish payment requirements.	new	False
ACQ13_BP11	ACQ.13.BP11: Identify risks.	new	False
ACQ13_BP12	ACQ.13.BP12: Communicate risks.	new	False
ACQ13_BP13	ACQ.13.BP13: Define ownership of relationships.	new	False
ACQ13_BP14	ACQ.13.BP14: Define rights for use and distribution.	new	False
ACQ13_BP15	ACQ.13.BP15: Establish support and maintenance requirements.	new	False
ACQ13_BP2	ACQ.13.BP2: Communicate with relevant groups.	new	False
ACQ13_BP3	ACQ.13.BP3: Define organizational requirements.	new	False
ACQ13_BP4	ACQ.13.BP4: Define management requirements.	new	False
ACQ13_BP5	ACQ.13.BP5: Identify required competency.	new	False
ACQ13_BP6	ACQ.13.BP6: Define responsibilities and goals.	new	False
ACQ13_BP7	ACQ.13.BP7: Identify information needs.	new	False
ACQ13_BP8	ACQ.13.BP8: Define exchange of information.	new	False
ACQ13_BP9	ACQ.13.BP9: Establish criteria for interim work products.	new	False
ACQ13_OUT1	1	new	False
ACQ13_OUT2	2	new	False
ACQ13_OUT3	3	new	False
ACQ13_OUT4	4	new	False
ACQ13_OUT5	5	new	False
ACQ13_OUT6	6	new	False
ACQ13_OUT7	7	new	False
ACQ13_OUT8	8	new	False
ACQ13_OUT9	9	new	False
ACQ14	Request for Proposals	new	False
ACQ14_BP1	ACQ.14.BP1: Define rules for CFP / ITT.	new	False
ACQ14_BP2	ACQ.14.BP2: Assemble requirements.	new	False
ACQ14_BP3	ACQ.14.BP3: Establish terms and conditions for CFP / ITT.	new	False
ACQ14_BP4	ACQ.14.BP4: Define financial terms.	new	False
ACQ14_BP5	ACQ.14.BP5: Define project terms.	new	False
ACQ14_BP6	ACQ.14.BP6: Define technical terms.	new	False
ACQ14_BP7	ACQ.14.BP7: Identify relevant regulations.	new	False
ACQ14_BP8	ACQ.14.BP8: Prepare and issue a CFP / ITT.	new	False
ACQ14_OUT1	1	new	False
ACQ14_OUT2	2	new	False
ACQ14_OUT3	3	new	False
ACQ14_OUT4	4	new	False
ACQ14_OUT5	5	new	False
ACQ14_OUT6	6	new	False
ACQ14_OUT7	7	new	False
ACQ15	Supplier Qualification	new	False
ACQ15_BP1	ACQ.15.BP1: Establish qualification criteria.	new	False
ACQ15_BP2	ACQ.15.BP2: Evaluate supplier.	new	False
ACQ15_BP3	ACQ.15.BP3: Short-list suppliers with required qualification.	new	False
ACQ15_BP4	ACQ.15.BP4: Evaluate any shortfalls.	new	False
ACQ15_BP5	ACQ.15.BP5: Perform corrective actions.	new	False
ACQ15_OUT1	1	new	False
ACQ15_OUT2	2	new	False
ACQ15_OUT3	3	new	False
ACQ15_OUT4	4	new	False
ACQ15_OUT5	5	new	False
ACQ2	Supplier request and selection	new	False
ACQ2_BP1	ACQ.2.BP1: Establish supplier evaluation criteria.	new	False
ACQ2_BP2	ACQ.2.BP2: Evaluate potential suppliers.	new	False
ACQ2_BP3	ACQ.2.BP3: Prepare and execute request for quotation	new	False
ACQ2_BP4	ACQ.2.BP4: Negotiate and award the contract/agreement.	new	False
ACQ2_OUT1	1	new	False
ACQ2_OUT2	2	new	False
ACQ2_OUT3	3	new	False
ACQ2_OUT4	4	new	False
ACQ3	Contract Agreement	new	False
ACQ3_OUT1	1	new	False
ACQ3_OUT2	2	new	False
ACQ3_OUT3	3	new	False
ACQ3_OUT4	4	new	False
ACQ4	Supplier Monitoring	new	False
ACQ4_BP1	ACQ.4.BP1: Agree on and maintain jointprocesses,	new	False
ACQ4_BP2	ACQ.4.BP2: Exchange all agreed information.	new	False
ACQ4_BP3	ACQ.4.BP3: Review technical development with the supplier.	new	False
ACQ4_BP4	ACQ.4.BP4: Review progress of the supplier.	new	False
ACQ4_BP5	ACQ.4.BP5: Act to correct deviations.	new	False
ACQ4_OUT1	1	new	False
ACQ4_OUT2	2	new	False
ACQ4_OUT3	3	new	False
ACQ4_OUT4	4	new	False
ACQ_3_BP1	ACQ.3.BP1: Negotiate the contract/agreement.	new	False
ACQ_3_BP2	ACQ.3.BP2: Specify rights and duties.	new	False
ACQ_3_BP3	ACQ.3.BP3: Review contract/agreement for supplier \ capability monitoring.	new	False
ACQ_3_BP4	ACQ.3.BP4: Review contract/agreement for risk mitigation \ actions.	new	False
ACQ_3_BP5	ACQ.3.BP5: Approve contract/agreement.	new	False
ACQ_3_BP6	ACQ.3.BP6: Award contract/agreement.	new	False
ACQ_3_BP7	ACQ.3.BP7: Communicate result to tenderers.	new	False

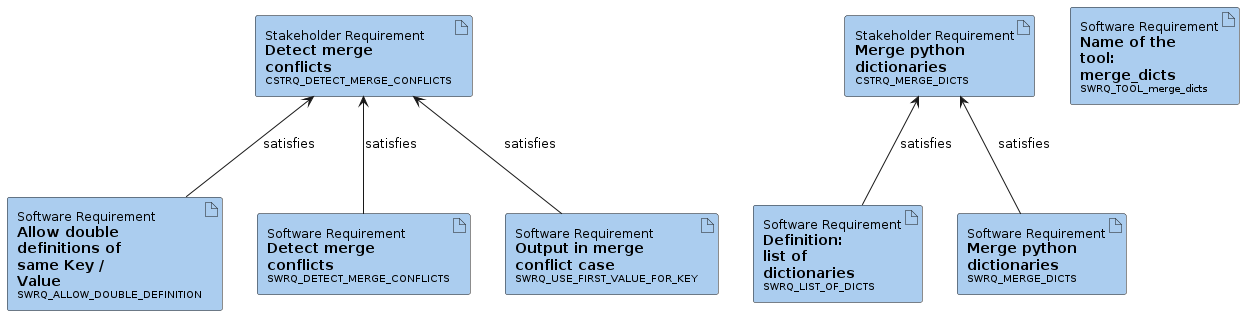

CSTRQ_DETECT_MERGE_CONFLICTS	Detect merge conflicts	accepted	True
CSTRQ_MERGE_DICTS	Merge python dictionaries	accepted	True
imp_test_item	Test Item	implemented	False
MAN3	Project Management	new	False
MAN3_BP1	MAN.3.BP1: Define the scope of work.	new	False
MAN3_BP10	MAN.3.BP10: Review and report progress of the project.	new	False
MAN3_BP2	MAN.3.BP2: Define project life cycle.	new	False
MAN3_BP3	MAN.3.BP3: Evaluate feasibility of the project.	new	False
MAN3_BP4	MAN.3.BP4: Define, monitor and adjust project activities.	new	False
MAN3_BP5	MAN.3.BP5: Define, monitor and adjust project estimates and resources.	new	False
MAN3_BP6	MAN.3.BP6: Ensure required skills, knowledge, and experience.	new	False
MAN3_BP7	MAN.3.BP7: Identify, monitor and adjust project interfaces and agreed commitments.	new	False
MAN3_BP8	MAN.3.BP8: Define, monitor and adjust project schedule.	new	False
MAN3_BP9	MAN.3.BP9: Ensure consistency.	new	False
MAN3_OUT1	1	new	False
MAN3_OUT2	2	new	False
MAN3_OUT3	3	new	False
MAN3_OUT4	4	new	False
MAN3_OUT5	5	new	False
MAN3_OUT6	6	new	False
MAN3_OUT7	7	new	False
MAN5	Risk Management	new	False
MAN5_BP1	MAN.5.BP1: Establish risk management scope.	new	False
MAN5_BP2	MAN.5.BP2: Define risk management strategies.	new	False
MAN5_BP3	MAN.5.BP3: Identify risks.	new	False
MAN5_BP4	MAN.5.BP4: Analyze risks.	new	False
MAN5_BP5	MAN.5.BP5: Define risk treatment actions.	new	False
MAN5_BP6	MAN.5.BP6: Monitor risks.	new	False
MAN5_BP7	MAN.5.BP7: Take corrective action.	new	False
MAN5_OUT1	1	new	False
MAN5_OUT2	2	new	False
MAN5_OUT3	3	new	False
MAN5_OUT4	4	new	False
MAN5_OUT5	5	new	False
MAN5_OUT6	6	new	False
MAN6	Measurement	new	False
MAN6_BP1	MAN.6.BP1: Establish organizational commitment for measurement.	new	False
MAN6_BP10	MAN.6.BP10: Evaluate information products and measurement activities.	new	False
MAN6_BP11	MAN.6.BP11: Communicate potential improvements.	new	False
MAN6_BP2	MAN.6.BP2: Develop measurement strategy.	new	False
MAN6_BP3	MAN.6.BP3: Identify measurement information needs.	new	False
MAN6_BP4	MAN.6.BP4: Specify measures.	new	False
MAN6_BP5	MAN.6.BP5: Perform measurement activities.	new	False
MAN6_BP6	MAN.6.BP6: Retrieve measurement data.	new	False
MAN6_BP7	MAN.6.BP7: Analyze measures.	new	False
MAN6_BP8	MAN.6.BP8: Use measurement information for decision-making.	new	False
MAN6_BP9	MAN.6.BP9: Communicate measures.	new	False
MAN6_OUT1	1	new	False
MAN6_OUT2	2	new	False
MAN6_OUT3	3	new	False
MAN6_OUT4	4	new	False
MAN6_OUT5	5	new	False
MAN6_OUT6	6	new	False
MAN6_OUT7	7	new	False
MAN7	Cybersecurity Risk Management	new	False
MAN7_BP1	MAN.7.BP1: Determine cybersecurity risk management scope.	new	False
MAN7_BP2	MAN.7.BP2: Define cybersecurity risk management practices.	new	False
MAN7_BP3	MAN.7.BP3: Identify potential risks.	new	False
MAN7_BP4	MAN.7.BP4: Prioritize potential risks initially for damage.	new	False
MAN7_BP5	MAN.7.BP5: Analyze potential risks and evaluate risks.	new	False
MAN7_BP6	MAN.7.BP6: Define risk treatment option.	new	False
MAN7_BP7	MAN.7.BP7: Monitor risks.	new	False
MAN7_BP8	MAN.7.BP8: Take corrective action.	new	False
MAN7_OUT1	1	new	False
MAN7_OUT2	2	new	False
MAN7_OUT3	3	new	False
MAN7_OUT4	4	new	False
MAN7_OUT5	5	new	False
MAN7_OUT6	6	new	False
MAN7_OUT7	7	new	False
MAN7_OUT8	8	new	False
PIM3	Process Improvement	new	False
PIM3_BP1	PIM.3.BP1: Establish commitment.	new	False
PIM3_BP2	PIM.3.BP2: Identify issues.	new	False
PIM3_BP3	PIM.3.BP3: Establish process improvement goals.	new	False
PIM3_BP4	PIM.3.BP4: Prioritize improvements.	new	False
PIM3_BP5	PIM.3.BP5: Plan process changes.	new	False
PIM3_BP6	PIM.3.BP6: Implement process changes.	new	False
PIM3_BP7	PIM.3.BP7: Confirm process improvement.	new	False
PIM3_BP8	PIM.3.BP8: Communicate results of improvement.	new	False
PIM3_BP9	PIM.3.BP9: Evaluate the results of the improvement project.	new	False
PIM3_OUT1	1	new	False
PIM3_OUT2	2	new	False
PIM3_OUT3	3	new	False
PIM3_OUT4	4	new	False
PIM3_OUT5	5	new	False
PIM3_OUT6	6	new	False
PIM3_OUT7	7	new	False
REU2	Reuse Program Management	new	False
REU2_BP1	REU.2.BP1: Define organizational reuse strategy.	new	False
REU2_BP3	REU.2.BP3: Assess domains for potential reuse.	new	False
REU2_BP4	REU.2.BP4: Assess reuse maturity.	new	False
REU2_BP5	REU.2.BP5: Evaluate reuse proposals.	new	False
REU2_BP6	REU.2.BP6: Implement the reuse program.	new	False
REU2_BP7	REU.2.BP7: Get feedback from reuse.	new	False
REU2_BP8	REU.2.BP8: Monitor reuse.	new	False
REU2_OUT1	1	new	False
REU2_OUT2	2	new	False
REU2_OUT3	3	new	False
REU2_OUT4	4	new	False
REU2_OUT5	5	new	False
REU2_OUT6	6	new	False
REU2_OUT7	7	new	False
REU2_OUT8	8	new	False
SEC1	Cybersecurity Requirements Elicitation	new	False
SEC1_BP1	SEC.1.BP1: Derive cybersecurity goals and cybersecurity requirements.	new	False
SEC1_BP2	SEC.1.BP2: Establish bidirectional traceability.	new	False
SEC1_BP3	SEC.1.BP3: Ensure consistency.	new	False
SEC1_BP4	SEC.1.BP4: Communicate agreed cybersecurity requirements.	new	False
SEC1_OUT1	1	new	False
SEC1_OUT2	2	new	False
SEC1_OUT3	3	new	False
SEC1_OUT4	4	new	False
SEC2	Cybersecurity Implementation	new	False
SEC2_BP1	SEC.2.BP1: Refine the details of the architectural design.	new	False
SEC2_BP10	SEC.2.BP10: Communicate agreed results of cybersecurity implementation.	new	False
SEC2_BP2	SEC.2.BP2: Allocate cybersecurity requirements.	new	False
SEC2_BP3	SEC.2.BP3: Select cybersecurity controls.	new	False
SEC2_BP4	SEC.2.BP4: Refine interfaces.	new	False
SEC2_BP5	SEC.2.BP5: Analyze architectural design.	new	False
SEC2_BP6	SEC.2.BP6: Refine the details of the detailed design.	new	False
SEC2_BP7	SEC.2.BP7: Develop software units.	new	False
SEC2_BP8	SEC.2.BP8: Establish bidirectional traceability.	new	False
SEC2_BP9	SEC.2.BP9: Ensure consistency.	new	False
SEC2_OUT1	1	new	False
SEC2_OUT2	2	new	False
SEC2_OUT3	3	new	False
SEC2_OUT4	4	new	False
SEC2_OUT5	5	new	False
SEC2_OUT6	6	new	False
SEC2_OUT7	7	new	False
SEC2_OUT8	8	new	False
SEC3	Risk Treatment Verification	new	False
SEC3_BP1	SEC.3.BP1: Develop a risk treatment verification and integration strategy.	new	False
SEC3_BP2	SEC.3.BP2: Develop specification for risk treatment verification.	new	False
SEC3_BP3	SEC.3.BP3: Perform verification activities.	new	False
SEC3_BP4	SEC.3.BP4: Establish bidirectional traceability.	new	False
SEC3_BP5	SEC.3.BP5: Ensure consistency.	new	False
SEC3_BP6	SEC.3.BP6: Summarize and communicate results.	new	False
SEC3_OUT1	1	new	False
SEC3_OUT2	2	new	False
SEC3_OUT3	3	new	False
SEC3_OUT4	4	new	False
SEC3_OUT5	5	new	False
SEC3_OUT6	6	new	False
SEC4	Risk Treatment Validation	new	False
SEC4_BP1	SEC.4.BP1: Develop a risk treatment validation strategy.	new	False
SEC4_BP2	SEC.4.BP2: Develop specification for risk treatment validation.	new	False
SEC4_BP3	SEC.4.BP3: Perform and document risk treatment validation activities.	new	False
SEC4_BP4	SEC.4.BP4: Establish bidirectional traceability.	new	False
SEC4_BP5	SEC.4.BP5: Ensure consistency.	new	False
SEC4_BP6	SEC.4.BP6 Summarize and communicate results.	new	False
SEC4_OUT1	1	new	False
SEC4_OUT2	2	new	False
SEC4_OUT3	3	new	False
SEC4_OUT4	4	new	False
SEC4_OUT5	5	new	False
SEC4_OUT6	6	new	False
SPL1	Supplier Tendering	new	False
SPL1_BP1	SPL.1.BP1: Establish communication interface.	new	False
SPL1_BP2	SPL.1.BP2: Perform customer inquiry screening.	new	False
SPL1_BP3	SPL.1.BP3: Establish customer proposal evaluation criteria.	new	False
SPL1_BP4	SPL.1.BP4: Evaluate customer request for proposal.	new	False
SPL1_BP5	SPL.1.BP5: Determine need for preliminary pre-studies.	new	False
SPL1_BP6	SPL.1.BP6: Identify and nominate staff.	new	False
SPL1_BP7	SPL.1.BP7: Prepare supplier proposal response.	new	False
SPL1_BP8	SPL.1.BP8: Establish confirmation of agreement.	new	False
SPL1_OUT1	1	new	False
SPL1_OUT2	2	new	False
SPL1_OUT3	3	new	False
SPL1_OUT4	4	new	False
SPL1_OUT5	5	new	False
SPL1_OUT6	6	new	False
SPL2	Product Release	new	False
SPL2_BP1	SPL.2.BP1: Define the functional content of releases.	new	False
SPL2_BP10	SPL.2.BP10: Ensure product release approval before delivery.	new	False
SPL2_BP11	SPL.2.BP11: Ensure consistency.	new	False
SPL2_BP12	SPL.2.BP12: Provide a release note.	new	False
SPL2_BP13	SPL.2.BP13: Deliver the release to the intended customer.	new	False
SPL2_BP2	SPL.2.BP2: Define release products.	new	False
SPL2_BP3	SPL.2.BP3: Establish a product release classification and numbering scheme.	new	False
SPL2_BP4	SPL.2.BP4: Define the build activities and build environment.	new	False
SPL2_BP5	SPL.2.BP5: Build the release from configured items.	new	False
SPL2_BP6	SPL2.BP6: Communicate the type, service level and duration of support \ for a release.	new	False
SPL2_BP7	SPL.2.BP7: Determine the delivery media type for the release.	new	False
SPL2_BP8	SPL.2.BP8: Identify the packaging for the release media.	new	False
SPL2_BP9	SPL.2.BP9: Define and produce the product release \ documentation/release notes.	new	False
SPL2_OUT1	1	new	False
SPL2_OUT2	2	new	False
SPL2_OUT3	3	new	False
SPL2_OUT4	4	new	False
SPL2_OUT5	5	new	False
SPL2_OUT6	6	new	False
SPL2_OUT7	7	new	False
SUP1	Quality Assurance	new	False
SUP10	Change Request Management	new	False
SUP10_BP1	SUP.10.BP1: Develop a change request management strategy.	new	False
SUP10_BP2	SUP.10.BP2: Identify and record the change requests.	new	False
SUP10_BP3	SUP.10.BP3: Record the status of change requests.	new	False
SUP10_BP4	SUP.10.BP4: Analyze and assess change requests.	new	False
SUP10_BP5	SUP.10.BP5: Approve change requests before implementation.	new	False
SUP10_BP6	SUP.10.BP6: Review the implementation of change requests.	new	False
SUP10_BP7	SUP.10.BP7: Track change requests to closure.	new	False
SUP10_BP8	SUP.10.BP8: Establish bidirectional traceability.	new	False
SUP10_OUT1	1	new	False
SUP10_OUT2	2	new	False
SUP10_OUT3	3	new	False
SUP10_OUT4	4	new	False
SUP10_OUT5	5	new	False
SUP10_OUT6	6	new	False
SUP10_OUT7	7	new	False
SUP10_OUT8	8	new	False
SUP10_OUT9	9	new	False
SUP1_BP1	SUP.1.BP1: Develop a project quality assurance strategy.	new	False
SUP1_BP2	SUP.1.BP2: Assure quality of work products.	new	False
SUP1_BP3	SUP.1.BP3: Assure quality of process activities.	new	False
SUP1_BP4	SUP.1.BP4: Summarize and communicate quality assurance activities and results.	new	False
SUP1_BP5	SUP.1.BP5: Ensure resolution of non-conformances.	new	False
SUP1_BP6	SUP.1.BP6: Implement an escalation mechanism.	new	False
SUP1_OUT1	1	new	False
SUP1_OUT2	2	new	False
SUP1_OUT3	3	new	False
SUP1_OUT4	4	new	False
SUP1_OUT5	5	new	False
SUP1_OUT6	6	new	False
SUP2	Verification	new	False
SUP2_BP1	SUP.2.BP1: Develop a verification strategy.	new	False
SUP2_BP2	SUP.2.BP2: Develop criteria for verification.	new	False
SUP2_BP3	SUP.2.BP3: Conduct verification.	new	False
SUP2_BP4	SUP.2.BP4: Determine and track actions for verification results.	new	False
SUP2_BP5	SUP.2.BP5: Report verification results.	new	False
SUP2_OUT1	1	new	False
SUP2_OUT2	2	new	False
SUP2_OUT3	3	new	False
SUP2_OUT4	4	new	False
SUP2_OUT5	5	new	False
SUP4	Joint Review	new	False
SUP4_BP1	SUP.4.BP1: Define review elements.	new	False
SUP4_BP2	SUP.4.BP2: Establish a mechanism to handle review outcomes.	new	False
SUP4_BP3	SUP.4.BP3: Prepare joint review.	new	False
SUP4_BP4	SUP.4.BP4: Conduct joint reviews.	new	False
SUP4_BP5	SUP.4.BP5: Distribute the results.	new	False
SUP4_BP6	SUP.4.BP6: Determine actions for review results.	new	False
SUP4_BP7	SUP.4.BP7: Track actions for review results.	new	False
SUP4_BP8	SUP.4.BP8: Identify and record problems.	new	False
SUP4_OUT1	1	new	False
SUP4_OUT2	2	new	False
SUP4_OUT3	3	new	False
SUP4_OUT4	4	new	False
SUP4_OUT5	5	new	False
SUP7	Documentation	new	False
SUP7_BP1	SUP.7.BP1: Develop a documentation management strategy.	new	False
SUP7_BP2	SUP.7.BP2: Establish standards for documentation.	new	False
SUP7_BP3	SUP.7.BP3: Specify documentation requirements.	new	False
SUP7_BP4	SUP.7.BP4: Identify the relevant documentation to be produced	new	False
SUP7_BP5	SUP.7.BP5: Develop documentation.	new	False
SUP7_BP6	SUP.7.BP6: Check documentation.	new	False
SUP7_BP7	SUP.7.BP7: Distribute documentation.	new	False
SUP7_BP8	SUP.7.BP8: Maintain documentation.	new	False
SUP7_OUT1	1	new	False
SUP7_OUT2	2	new	False
SUP7_OUT3	3	new	False
SUP7_OUT4	4	new	False
SUP7_OUT5	5	new	False
SUP7_OUT6	6	new	False
SUP8	Configuration Management	new	False
SUP8_BP1	SUP.8.BP1: Develop a configuration management strategy.	new	False
SUP8_BP2	SUP.8.BP2: Identify configuration items.	new	False
SUP8_BP3	SUP.8.BP3: Establish a configuration management system.	new	False
SUP8_BP4	SUP.8.BP4: Establish branch management.	new	False
SUP8_BP5	SUP.8.BP5: Control modifications and releases.	new	False
SUP8_BP6	SUP.8.BP6: Establish baselines.	new	False
SUP8_BP7	SUP.8.BP7: Report configuration status.	new	False
SUP8_BP8	SUP.8.BP8: Verify the information about configured items.	new	False
SUP8_BP9	SUP.8.BP9: Manage the storage of configuration items and baselines.	new	False
SUP8_OUT1	1	new	False
SUP8_OUT2	2	new	False
SUP8_OUT3	3	new	False
SUP8_OUT4	4	new	False
SUP8_OUT5	5	new	False
SUP8_OUT6	6	new	False
SUP8_OUT7	7	new	False
SUP9	Problem Resolution Management	new	False
SUP9_BP1	SUP.9.BP1: Develop a problem resolution management strategy.	new	False
SUP9_BP2	SUP.9.BP2: Identify and record the problem.	new	False
SUP9_BP3	SUP.9.BP3: Record the status of problems.	new	False
SUP9_BP4	SUP.9.BP4: Diagnose the cause and determine the impact of the problem.	new	False
SUP9_BP5	SUP.9.BP5: Authorize urgent resolution action.	new	False
SUP9_BP6	SUP.9.BP6: Raise alert notifications.	new	False
SUP9_BP7	SUP.9.BP7: Initiate problem resolution.	new	False
SUP9_BP8	SUP.9.BP8: Track problems to closure.	new	False
SUP9_BP9	SUP.9.BP9: Analyze problem trends.	new	False
SUP9_OUT1	1	new	False
SUP9_OUT2	2	new	False
SUP9_OUT3	3	new	False
SUP9_OUT4	4	new	False
SUP9_OUT5	5	new	False
SUP9_OUT6	6	new	False
SWE1	Software Requirements Analysis	new	False
SWE1_BP1	SWE.1.BP1: Specify software requirements.	new	False
SWE1_BP2	SWE.1.BP2: Structure software requirements.	new	False
SWE1_BP3	SWE.1.BP3: Analyze software requirements.	new	False
SWE1_BP4	SWE.1.BP4: Analyze the impact on the operating environment.	new	False
SWE1_BP5	SWE.1.BP5: Develop verification criteria.	new	False
SWE1_BP6	SWE.1.BP6: Establish bidirectional traceability.	new	False
SWE1_BP7	SWE.1.BP7: Ensure consistency.	new	False
SWE1_BP8	SWE.1.BP8: Communicate agreed software requirements.	new	False
SWE1_OUT1	1	new	False
SWE1_OUT2	2	new	False
SWE1_OUT3	3	new	False
SWE1_OUT4	4	new	False
SWE1_OUT5	5	new	False
SWE1_OUT6	6	new	False
SWE1_OUT7	7	new	False
SWE1_OUT8	8	new	False
SWE2	Software Architectural Design	new	False
SWE2_BP1	SWE.2.BP1: Develop software architectural design.	new	False
SWE2_BP2	SWE.2.BP2: Allocate software requirements.	new	False
SWE2_BP3	SWE.2.BP3: Define interfaces of software elements.	new	False
SWE2_BP4	SWE.2.BP4: Describe dynamic behavior.	new	False
SWE2_BP5	SWE.2.BP5: Define resource consumption objectives.	new	False
SWE2_BP6	SWE.2.BP6: Evaluate alternative software architectures.	new	False
SWE2_BP7	SWE.2.BP7: Establish bidirectional traceability.	new	False
SWE2_BP8	SWE.2.BP8: Ensure consistency.	new	False
SWE2_BP9	SWE.2.BP9: Communicate agreed software architectural design.	new	False
SWE2_OUT1	1	new	False
SWE2_OUT2	2	new	False
SWE2_OUT3	3	new	False
SWE2_OUT4	4	new	False
SWE2_OUT5	5	new	False
SWE2_OUT6	6	new	False
SWE3	Software Detailed Design and Unit Construction	new	False
SWE3_BP1	SWE.3.BP1: Develop software detailed design.	new	False
SWE3_BP2	SWE.3.BP2: Define interfaces of software units.	new	False
SWE3_BP3	SWE.3.BP3: Describe dynamic behavior.	new	False
SWE3_BP4	SWE.3.BP4: Evaluate software detailed design.	new	False
SWE3_BP5	SWE.3.BP5: Establish bidirectional traceability.	new	False
SWE3_BP6	SWE.3.BP6: Ensure consistency.	new	False
SWE3_BP7	SWE.3.BP7: Communicate agreed software detailed design.	new	False
SWE3_BP8	SWE.3.BP8: Develop software units.	new	False
SWE3_OUT1	1	new	False
SWE3_OUT2	2	new	False
SWE3_OUT3	3	new	False
SWE3_OUT4	4	new	False
SWE3_OUT5	5	new	False
SWE3_OUT6	6	new	False
SWE4	Software Unit Verification	new	False
SWE4_BP1	SWE.4.BP1: Develop software unit verification strategy including regression strategy.	new	False
SWE4_BP2	SWE.4.BP2: Develop criteria for unit verification.	new	False
SWE4_BP3	SWE.4.BP3: Perform static verification of software units.	new	False
SWE4_BP4	SWE.4.BP4: Test software units.	new	False
SWE4_BP5	SWE.4.BP5: Establish bidirectional traceability.	new	False
SWE4_BP6	SWE.4.BP6: Ensure consistency.	new	False
SWE4_BP7	SWE.4.BP7: Summarize and communicate results.	new	False
SWE4_OUT1	1	new	False
SWE4_OUT2	2	new	False
SWE4_OUT3	3	new	False
SWE4_OUT4	4	new	False
SWE4_OUT5	5	new	False
SWE5	Software Integration and Integration Test	new	False
SWE5_BP1	SWE.5.BP1: Develop software integration strategy.	new	False
SWE5_BP2	SWE.5.BP2: Develop software integration test strategy including regression test strategy.	new	False
SWE5_BP3	SWE.5.BP3: Develop specification for software integration test.	new	False
SWE5_BP4	SWE.5.BP4: Integrate software units and software items.	new	False
SWE5_BP5	SWE.5.BP5: Select test cases.	new	False
SWE5_BP6	SWE.5.BP6: Perform software integration test.	new	False
SWE5_BP7	SWE.5.BP7: Establish bidirectional traceability.	new	False
SWE5_BP8	SWE.5.BP8: Ensure consistency.	new	False
SWE5_BP9	SWE.5.BP9: Summarize and communicate results.	new	False
SWE5_OUT1	1	new	False
SWE5_OUT2	2	new	False
SWE5_OUT3	3	new	False
SWE5_OUT4	4	new	False
SWE5_OUT5	5	new	False
SWE5_OUT6	6	new	False
SWE5_OUT7	7	new	False
SWE5_OUT8	8	new	False
SWE6	Software Qualification Test	new	False
SWE6_BP1	SWE.6.BP1: Develop software qualification test strategy including regression test strategy.	new	False
SWE6_BP2	SWE.6.BP2: Develop specification for software qualification test.	new	False
SWE6_BP3	SWE.6.BP3: Select test cases.	new	False
SWE6_BP4	SWE.6.BP4: Test integrated software.	new	False
SWE6_BP5	SWE.6.BP5: Establish bidirectional traceability.	new	False
SWE6_BP6	SWE.6.BP6: Ensure consistency.	new	False
SWE6_BP7	SWE.6.BP7: Summarize and communicate results.	new	False
SWE6_OUT1	1	new	False
SWE6_OUT2	2	new	False
SWE6_OUT3	3	new	False
SWE6_OUT4	4	new	False
SWE6_OUT5	5	new	False
SWE6_OUT6	6	new	False
SYS1	Requirements Elicitation	new	False
SYS1_BP1	SYS.1.BP1: Obtain stakeholder requirements and requests.	new	False
SYS1_BP2	SYS.1.BP2: Understand stakeholder expectations.	new	False
SYS1_BP3	SYS.1.BP3: Agree on requirements.	new	False
SYS1_BP4	SYS.1.BP4: Establish stakeholder requirements baseline.	new	False
SYS1_BP5	SYS.1.BP5: Manage stakeholder requirements changes.	new	False
SYS1_BP6	SYS.1.BP6: Establish customer-supplier query communication mechanism.	new	False
SYS1_OUT1	1	new	False
SYS1_OUT2	2	new	False
SYS1_OUT3	3	new	False
SYS1_OUT4	4	new	False
SYS1_OUT5	5	new	False
SYS1_OUT6	6	new	False
SYS2	System Requirements Analysis	new	False
SYS2_BP1	SYS.2.BP1: Specify system requirements.	new	False
SYS2_BP2	SYS.2.BP2: Structure system requirements.	new	False
SYS2_BP3	SYS.2.BP3: Analyze system requirements.	new	False
SYS2_BP4	SYS.2.BP4: Analyze the impact on the operating environment.	new	False
SYS2_BP5	SYS.2.BP5: Develop verification criteria.	new	False
SYS2_BP6	SYS.2.BP6: Establish bidirectional traceability.	new	False
SYS2_BP7	SYS.2.BP7: Ensure consistency	new	False
SYS2_BP8	SYS.2.BP8: Communicate agreed system requirements.	new	False
SYS2_OUT1	1	new	False
SYS2_OUT2	2	new	False
SYS2_OUT3	3	new	False
SYS2_OUT4	4	new	False
SYS2_OUT5	5	new	False
SYS2_OUT6	6	new	False
SYS2_OUT7	7	new	False
SYS2_OUT8	8	new	False
SYS3	System Architectural Design	new	False
SYS3_BP1	SYS.3.BP1: Develop system architectural design.	new	False
SYS3_BP2	SYS.3.BP2: Allocate system requirements.	new	False
SYS3_BP3	SYS.3.BP3: Define interfaces of system elements.	new	False
SYS3_BP4	SYS.3.BP4: Describe dynamic behavior.	new	False
SYS3_BP5	SYS.3.BP5: Evaluate alternative system architectures.	new	False
SYS3_BP6	SYS.3.BP6: Establish bidirectional traceability.	new	False
SYS3_BP7	SYS.3.BP7: Ensure consistency.	new	False
SYS3_BP8	SYS.3.BP8: Communicate agreed system architectural design.	new	False
SYS3_OUT1	1	new	False
SYS3_OUT2	2	new	False
SYS3_OUT3	3	new	False
SYS3_OUT4	4	new	False
SYS3_OUT5	5	new	False
SYS3_OUT6	6	new	False
SYS4	System Integration and Integration Test	new	False
SYS4_BP1	SYS.4.BP1: Develop system integration strategy.	new	False
SYS4_BP2	SYS.4.BP2: Develop system integration test strategy including \ regression test strategy.	new	False
SYS4_BP3	SYS.4.BP3: Develop specification for system integration test.	new	False
SYS4_BP4	SYS.4.BP4: Integrate system items.	new	False
SYS4_BP5	SYS.4.BP5: Select test cases.	new	False
SYS4_BP6	SYS.4.BP6: Perform system integration test.	new	False
SYS4_BP7	SYS.4.BP7: Establish bidirectional traceability.	new	False
SYS4_BP8	SYS.4.BP8: Ensure consistency.	new	False
SYS4_BP9	SYS.4.BP9: Summarize and communicate results.	new	False
SYS4_OUT1	1	new	False
SYS4_OUT2	2	new	False
SYS4_OUT3	3	new	False
SYS4_OUT4	4	new	False
SYS4_OUT5	5	new	False
SYS4_OUT6	6	new	False
SYS4_OUT7	7	new	False
SYS4_OUT8	8	new	False
SYS5	System Qualification Test	new	False
SYS5_BP1	SYS.5.BP1: Develop system qualification test strategy including \ regression test strategy.	new	False
SYS5_BP2	SYS.5.BP2: Develop specification for system qualification test.	new	False
SYS5_BP3	SYS.5.BP3: Select test cases.	new	False
SYS5_BP4	SYS.5.BP4: Test integrated system.	new	False
SYS5_BP5	SYS.5.BP5: Establish bidirectional traceability.	new	False
SYS5_BP6	SYS.5.BP6: Ensure consistency.	new	False
SYS5_BP7	SYS.5.BP7: Summarize and communicate results.	new	False
SYS5_OUT1	1	new	False
SYS5_OUT2	2	new	False
SYS5_OUT3	3	new	False
SYS5_OUT4	4	new	False
SYS5_OUT5	5	new	False
SYS5_OUT6	6	new	False

NeedFlow

Documentation: How-to use Sphinx-Needs NeedFlow [10]. The code been expected and generated is for plantuml [15]. You can configure the visual representation of needs elements in needflow with needs-types. NeedFlow expects to get plantuml deployment-diagram [13] elements as representation.

Example 13: How-to use a NeedFlow.

.. needflow:: Requirement Linkage
   :filter: is_external == True and (type=='stake_req' or type=='sw_req')
   :show_link_names:
   :debug:
   :scale: 30

Requirement Linkage

@startuml

' Nodes definition

artifact "<size:12>Stakeholder Requirement</size>\n**Detect merge**\n**conflicts**\n<size:10>CSTRQ_DETECT_MERGE_CONFLICTS</size>" as CSTRQ_DETECT_MERGE_CONFLICTS [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/stakeholder_specification.html#CSTRQ_DETECT_MERGE_CONFLICTS]] #abcdef
artifact "<size:12>Stakeholder Requirement</size>\n**Merge python**\n**dictionaries**\n<size:10>CSTRQ_MERGE_DICTS</size>" as CSTRQ_MERGE_DICTS [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/stakeholder_specification.html#CSTRQ_MERGE_DICTS]] #abcdef
artifact "<size:12>Software Requirement</size>\n**Allow double**\n**definitions of**\n**same Key /**\n**Value**\n<size:10>SWRQ_ALLOW_DOUBLE_DEFINITION</size>" as SWRQ_ALLOW_DOUBLE_DEFINITION [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_ALLOW_DOUBLE_DEFINITION]] #abcdef{
'child needs:
}
artifact "<size:12>Software Requirement</size>\n**Detect merge**\n**conflicts**\n<size:10>SWRQ_DETECT_MERGE_CONFLICTS</size>" as SWRQ_DETECT_MERGE_CONFLICTS [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_DETECT_MERGE_CONFLICTS]] #abcdef{
'child needs:
}
artifact "<size:12>Software Requirement</size>\n**Definition:**\n**list of**\n**dictionaries**\n<size:10>SWRQ_LIST_OF_DICTS</size>" as SWRQ_LIST_OF_DICTS [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_LIST_OF_DICTS]] #abcdef{
'child needs:
}
artifact "<size:12>Software Requirement</size>\n**Merge python**\n**dictionaries**\n<size:10>SWRQ_MERGE_DICTS</size>" as SWRQ_MERGE_DICTS [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_MERGE_DICTS]] #abcdef
artifact "<size:12>Software Requirement</size>\n**Name of the**\n**tool:**\n**merge_dicts**\n<size:10>SWRQ_TOOL_merge_dicts</size>" as SWRQ_TOOL_merge_dicts [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_TOOL_merge_dicts]] #abcdef
artifact "<size:12>Software Requirement</size>\n**Output in merge**\n**conflict case**\n<size:10>SWRQ_USE_FIRST_VALUE_FOR_KEY</size>" as SWRQ_USE_FIRST_VALUE_FOR_KEY [[https://reconf2023-product-as-code-philippartsch-a4d4571b1b7e4136d3bdb6.gitlab.io/requirements/software_specification.html#SWRQ_USE_FIRST_VALUE_FOR_KEY]] #abcdef{
'child needs:
}

' Connection definition

SWRQ_ALLOW_DOUBLE_DEFINITION -up-> CSTRQ_DETECT_MERGE_CONFLICTS: satisfies\n
SWRQ_DETECT_MERGE_CONFLICTS -up-> CSTRQ_DETECT_MERGE_CONFLICTS: satisfies\n
SWRQ_LIST_OF_DICTS -up-> CSTRQ_MERGE_DICTS: satisfies\n
SWRQ_MERGE_DICTS -up-> CSTRQ_MERGE_DICTS: satisfies\n
SWRQ_USE_FIRST_VALUE_FOR_KEY -up-> CSTRQ_DETECT_MERGE_CONFLICTS: satisfies\n

@enduml

Structured Sphinx-Needs reports in tables

Often you have the use case to structure reports of Sphinx-Needs in table view. You can do this with e.g. a list-table to structure the visual representation.

Example 14: Reports structured with tables

.. list-table:: Reports
      :header-rows: 1

      * - Report
        - Representation
      * - NeedPie
        - .. needpie:: Ratio of requirement types
             :labels: Stakeholder Requirement, Software Requirement, Evaluation

             type == 'stake_req' and is_external == True
             type == 'sw_req' and is_external == True
             type == 'evaluation' and is_external == True

      * - NeedBar
        - .. needbar:: Requirements & Status Overview
             :legend:
             :colors: black, yellow, orange, green
             :xlabels: FROM_DATA
             :ylabels: FROM_DATA

                        ,        Stakeholder Requirement             ,           Software Requirement
                   empty, type=='stake_req' and status==''           ,    type=='sw_req' and status==''
                accepted, type=='stake_req' and status=='accepted'   ,    type=='sw_req' and status=='accepted'
             implemented, type=='stake_req' and status=='implemented',    type=='sw_req' and status=='implemented'
                verified, type=='stake_req' and status=='verified'   ,    type=='sw_req' and status=='verified'

      * - NeedTable
        - .. needtable:: List of software requirements
             :types: sw_req
             :style: table
             :columns: id; title; status

      * - NeedFlow
        - .. needflow:: Requirement Linkage
             :filter: is_external == True and (type=='stake_req' or type=='sw_req')
             :show_link_names:
             :show_filters:
             :scale: 30

Table 37 Reports

Report	Representation
NeedPie
NeedBar
NeedTable	List of software requirements ID Title Status SWRQ_ALLOW_DOUBLE_DEFINITION Allow double definitions of same Key / Value verified SWRQ_DETECT_MERGE_CONFLICTS Detect merge conflicts verified SWRQ_LIST_OF_DICTS Definition: list of dictionaries verified SWRQ_MERGE_DICTS Merge python dictionaries verified SWRQ_TOOL_merge_dicts Name of the tool: merge_dicts verified SWRQ_USE_FIRST_VALUE_FOR_KEY Output in merge conflict case verified
NeedFlow	Requirement Linkage Used filter:

NeedUml

Documentation: How-to use Sphinx-Needs NeedUml [12]. The debug option is often useful here, see Sphinx-Needs NeedUml & NeedArch debug option [14]. The code been expected and generated is for plantuml [15]. You can use needs-render-context to extend the data available in needarch and needuml.

Example 15: How-to use a NeedUml.

.. needuml::

   {{uml("M_MERGE_DICTS", "class")}}

   note right of [M_MERGE_DICTS]
      We use M_MERGE_DICTS to merge python dictionaries.
   end note

NeedArch

NeedArch is extending the functionality of NeedUml, to access local data of a Need. Documentation: How-to use Sphinx-Needs NeedArch [11]. The code been expected and generated is for plantuml [15] and you can use jinja [16] to template your plantuml code.

You can find detailed description in Architecture Expert Guide.

Example 16: How-to use a NeedArch`

.. arch_module:: Our own script
   :id: M_OWN_SCRIPT

   .. needarch::

      'example how to use information from the current need
      {{flow(need().id)}}
      'add diagram information from another source
      {{uml("M_MERGE_DICTS", "class")}}
      'link elements
      {{need().id}} -> {{needs["M_MERGE_DICTS"].implements[0]}}

Module: Our own script M_OWN_SCRIPT

Templating

With templates you can template the content for needs. It is even possible to add text before and after a need. The documentation is part of needs doc under How-to use Sphinx-Needs Templates [17].

We use it here finally in conf.py:

Listing 5 How-to assign the templates to needs via global options

needs_global_options = {
    'test_status': {'predicates': [('type=="sw_req"', '[[check_verified()]]')]},

The templates are defined available in /needs_templates e.g. arch_template.need used in docname == “architecture-examples”:

Listing 6 How-to assign the templates to needs via global options

{# Place the original content here #}
{{content}}

**Following needarch is been added with needs template**

:np:`(Deployment)` Diagram

{% raw %}
.. needarch::
   :key: Deployment

   {{flow(need().id)}} {
   {% for e in need().parent_needs_back %}
   {% if needs[e].parent_need == need().id and (needs[e].type == "outport" or needs[e].type == "inport") %}{{uml(e)}}{% endif %}
   {% endfor %}
   {% if 'Deployment' in need().parts %}card "Deployment Diagram" as {{need().id + '.Deployment'}} {{ref(need().id + '.Deployment')}}{% endif %}
   {% if 'Sequence' in need().parts %}card "Sequence Diagram" as {{need().id + '.Sequence'}} {{ref(need().id + '.Sequence')}}{% endif %}
   }
{% endraw %}

An example need which uses such template is Component with Diagrams (C_DIAGRAMS).

Dynamic functions

Documentation: How-to use Sphinx-Needs Dynamic functions [18].

You can even define your own dynamic functions in conf.py and use them in your needs. See Sphinx-Needs develop-own-functions.

Example 17: How-to use dynamic functions.

.. need:: Test Dynamic Functions 0
   :id: N_DF_0
   :status: open
   :links: [[links_from_content()]]

   Uses dynamic function ``links_from_content()`` to fetch all links mentioned in the content.
   e.g. :need:`N_DF_1` and :need:`N_DF_3` are now part of the linked elements.


.. need:: Test Dynamic Functions 1
   :id: N_DF_1
   :status: open

   This need has id :ndf:`copy("id")` and status :ndf:`copy("status")`.

.. need:: Test Dynamic Functions 2
   :id: N_DF_2
   :status: [[copy("status", "N_DF_1")]]
   :links: N_DF_1

   Copies status of :need:`N_DF_1` to own status.

.. need:: Test Dynamic Functions 3
   :id: N_DF_3
   :links: N_DF_2, [[copy('links', 'N_DF_2')]]

   Set own link to :need:`N_DF_1` and also copies all links from it.

Need: Test Dynamic Functions 0 N_DF_0

status: open links outgoing: N_DF_1, N_DF_3

Uses dynamic function links_from_content() to fetch all links mentioned in the content. e.g. Test Dynamic Functions 1 (N_DF_1) and Test Dynamic Functions 3 (N_DF_3) are now part of the linked elements.

Need: Test Dynamic Functions 1 N_DF_1

status: open links incoming: N_DF_0, N_DF_2, N_DF_3

This need has id N_DF_1 and status open.

Need: Test Dynamic Functions 2 N_DF_2

status: open links outgoing: N_DF_1 links incoming: N_DF_3

Copies status of Test Dynamic Functions 1 (N_DF_1) to own status.

Need: Test Dynamic Functions 3 N_DF_3

links outgoing: N_DF_2, N_DF_1 links incoming: N_DF_0

Set own link to Test Dynamic Functions 1 (N_DF_1) and also copies all links from it.

Layouts

Documentation: with an dedicated chapter under How-to use Sphinx-Needs Layouts & Styles [19].

You can define your own layouts finally in conf.py with needs_layouts and use them for your needs:

Listing 7 How-to define the layouts

needs_layouts = {
    "clean_with_edit_link": {
        "grid": "simple",
        "layout": {
            "head": [
                '<<meta("type_name")>>: **<<meta("title")>>** <<meta_id()>>  <<collapse_button("meta", '
                'collapsed="icon:arrow-down-circle", visible="icon:arrow-right-circle", initial=False)>>   '
                '<<link(url="github_edit_url", image_url="icon:edit", image_height="17", image_width="17", is_dynamic=True)>>'
            ],
            "meta": [
                '<<meta_all(no_links=True, exclude=["layout", "post_template", "style", "delete", "jinja_content", "github_edit_url"])>>',
                '<<meta_links_all()>>'
            ],
        },

It is been used here, to get the edit button on all needs.

You can set the default layout like we do in conf.py

Listing 8 How-to set default layout of a need

needs_default_layout = 'clean_with_edit_link'

You could set the layout even via needs_global_options.

Variant Management

You can find detailed description in How-To use variant management.

Schema Validation

With Sphinx-Needs 6.0.0 it is possible to define a data schema of all needs. It enables strong type definition. The schema follows the json schema definition, but extends it to support even modelling of relations. See more details in the Documentation. It is now possible to define for needs_extra_options a strong type definition which is the basis for further ontology information, see needs_extra_options in the Documentation.

Schema Validation is for bigger setups and should be agreed from experts in ontology management.

Extensions for Visual Studio Code

ubCode

ubCode provides support for Sphinx-Needs and rst via a toml configuration file and a implements rst / Sphinx-Needs parser in Rust. It offers gui tools in the IDE like preview of complete rst files, link preview, used / defined linkage of needs elements, and more. Important are the rst and Sphinx-Needs linter and beautifier. See more details in the Documentation.

References

[1]

https://sphinx-needs.readthedocs.io/en/latest/directives/need.html

[2]

https://sphinx-needs.readthedocs.io/en/latest/configuration.html#needs-types

[3]

https://sphinx-needs.readthedocs.io/en/latest/configuration.html#needs-extra-options

[4]

https://sphinx-needs.readthedocs.io/en/latest/configuration.html#needs-extra-links

[5]

https://sphinx-needs.readthedocs.io/en/latest/roles.html#need

[6]

https://sphinx-needs.readthedocs.io/en/latest/filter.html

[7]

https://sphinx-needs.readthedocs.io/en/latest/directives/needpie.html

[8]

https://sphinx-needs.readthedocs.io/en/latest/directives/needbar.html

[9]

https://sphinx-needs.readthedocs.io/en/latest/directives/needtable.html

[10]

https://sphinx-needs.readthedocs.io/en/latest/directives/needflow.html

[11]

https://sphinx-needs.readthedocs.io/en/latest/directives/needarch.html

[12]

https://sphinx-needs.readthedocs.io/en/latest/directives/needuml.html

[13]

http://plantuml.com/deployment-diagram

[14]

https://sphinx-needs.readthedocs.io/en/latest/directives/needuml.html#debug

[15] (1,2,3)

https://plantuml.com

[16]

https://jinja.palletsprojects.com

[17]

https://sphinx-needs.readthedocs.io/en/latest/directives/need.html#template

[18]

https://sphinx-needs.readthedocs.io/en/latest/dynamic_functions.html

[19]

https://sphinx-needs.readthedocs.io/en/latest/layout_styles.html
